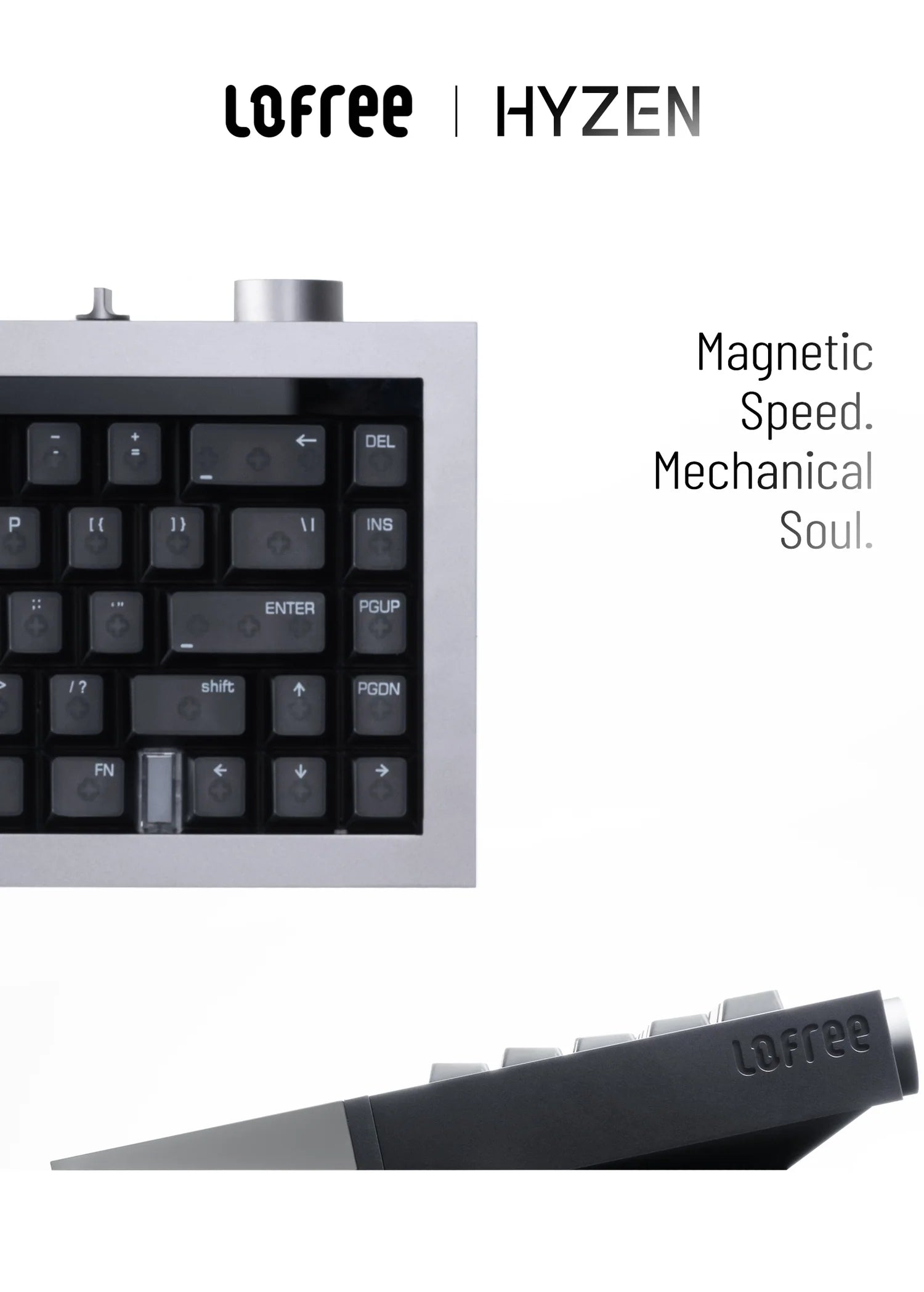

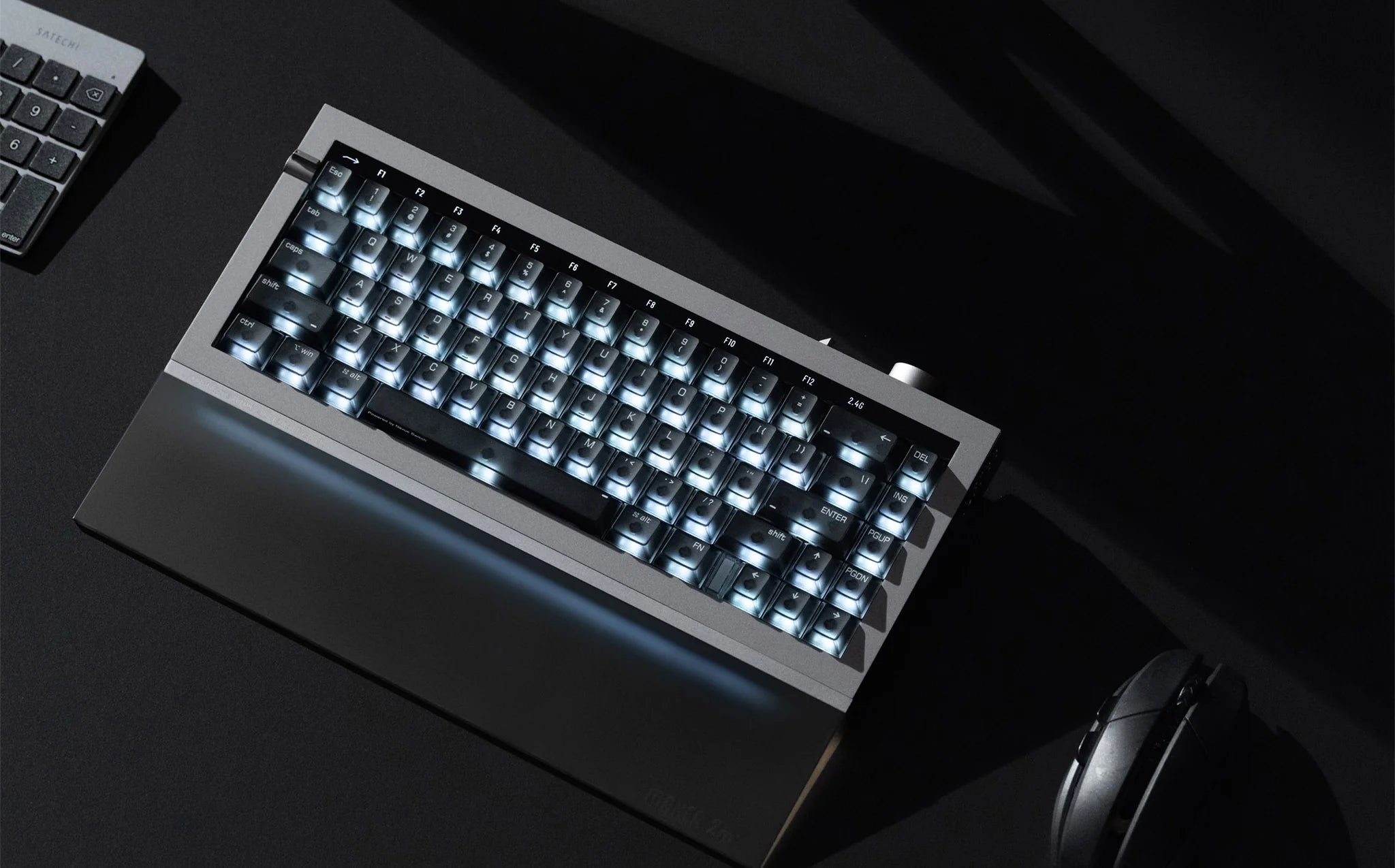

Lofree Hyzen

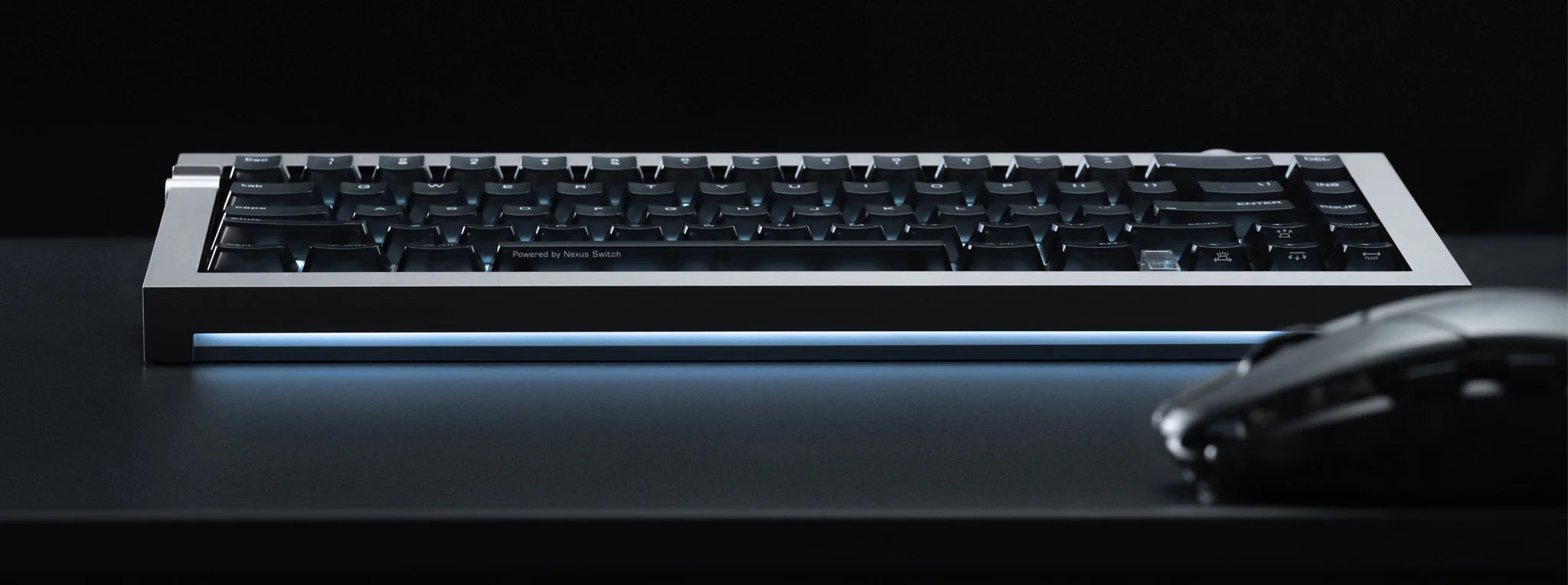

The Lofree Hyzen is a 65% board in a single-block CNC aluminium case whose Kailh × Lofree Nexus switches are magnetic and mechanical at the same time: TMR sensing for the actuation, a mechanical structure for the feel.

Specification

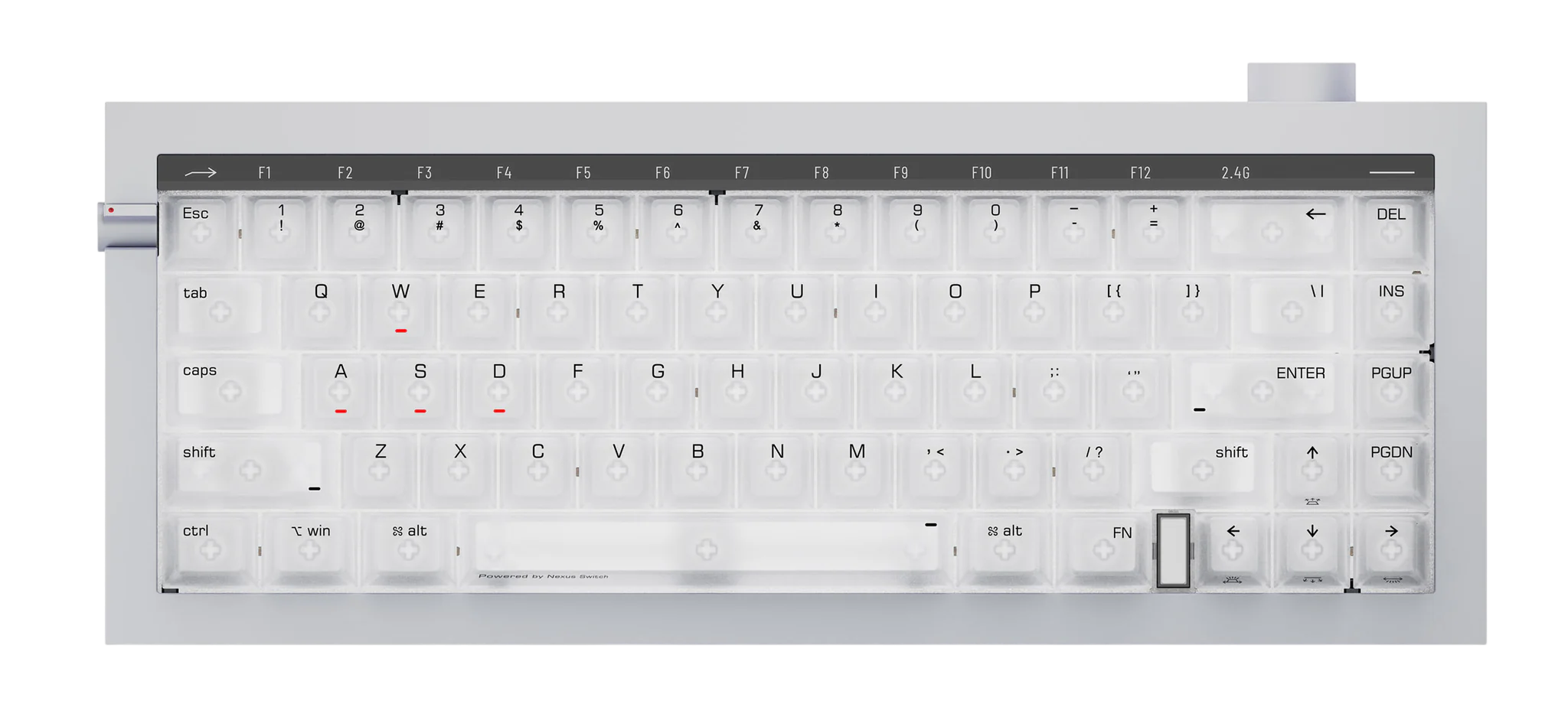

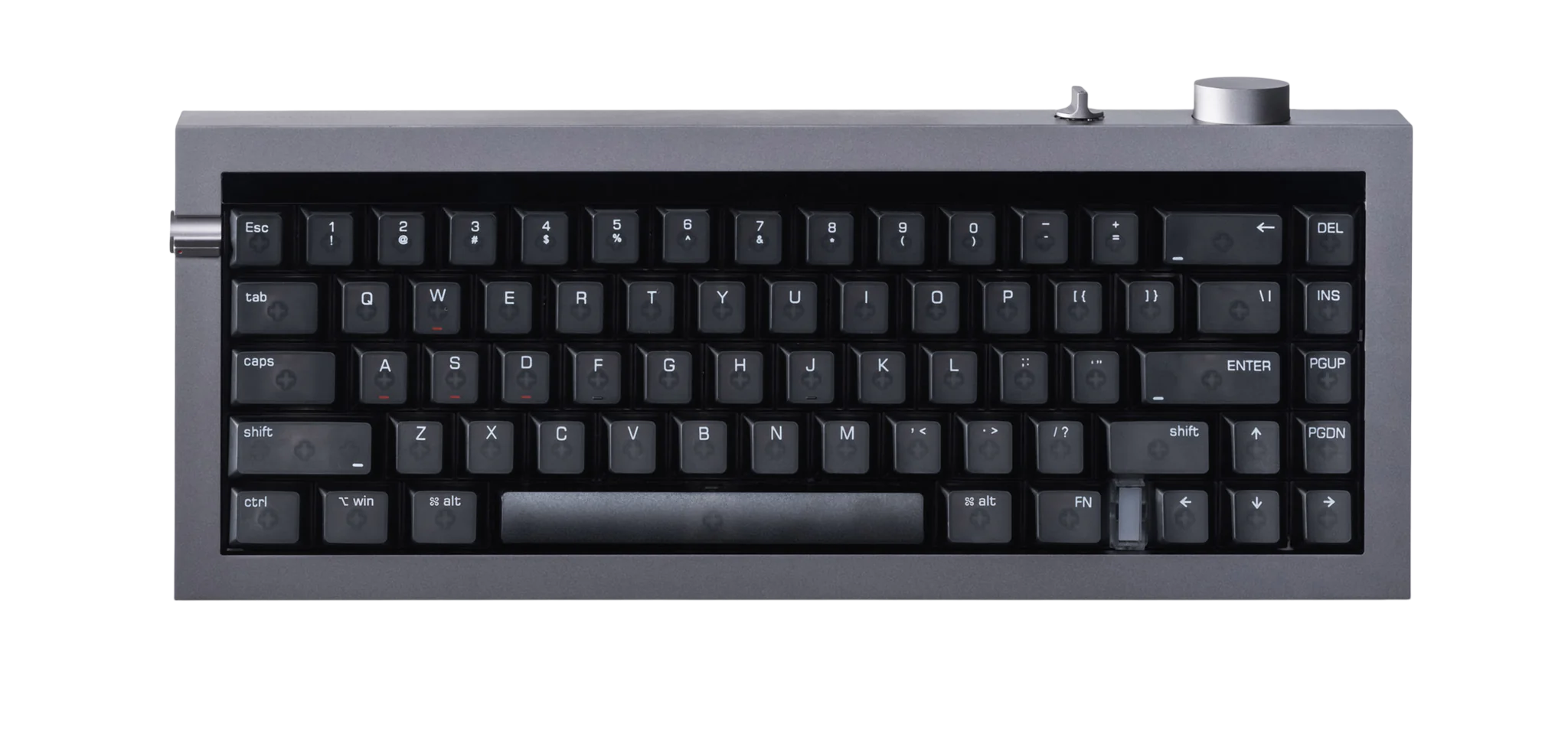

Layout 65%, 67 keys

Switches Kailh × Lofree Nexus hybrid mechanical-magnetic, TMR sensing

Hot-swap Magnetic and mechanical switches both

Actuation 0.01 - 3.5 mm adjustable, 0.01 mm Rapid Trigger

Polling rate Up to 8000 Hz wired and 2.4 GHz, 0.125 ms

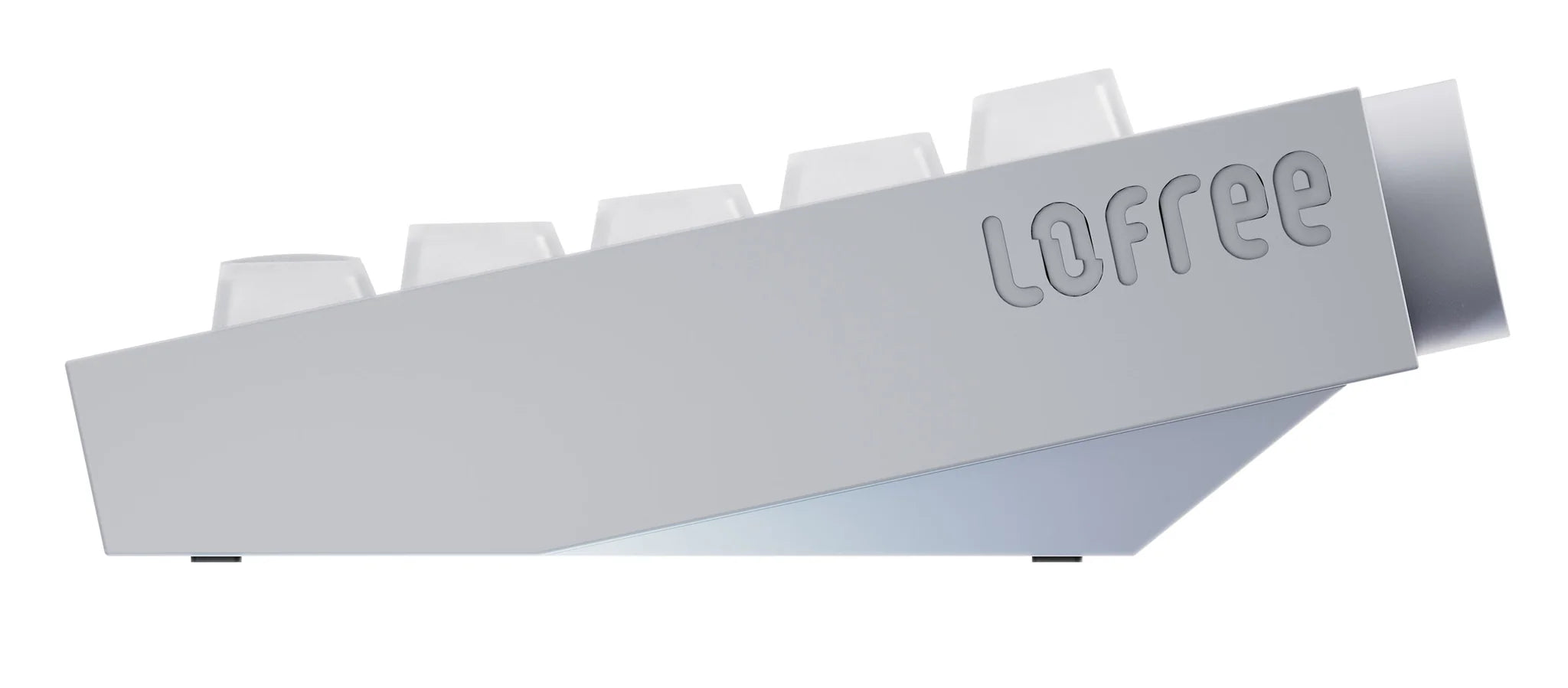

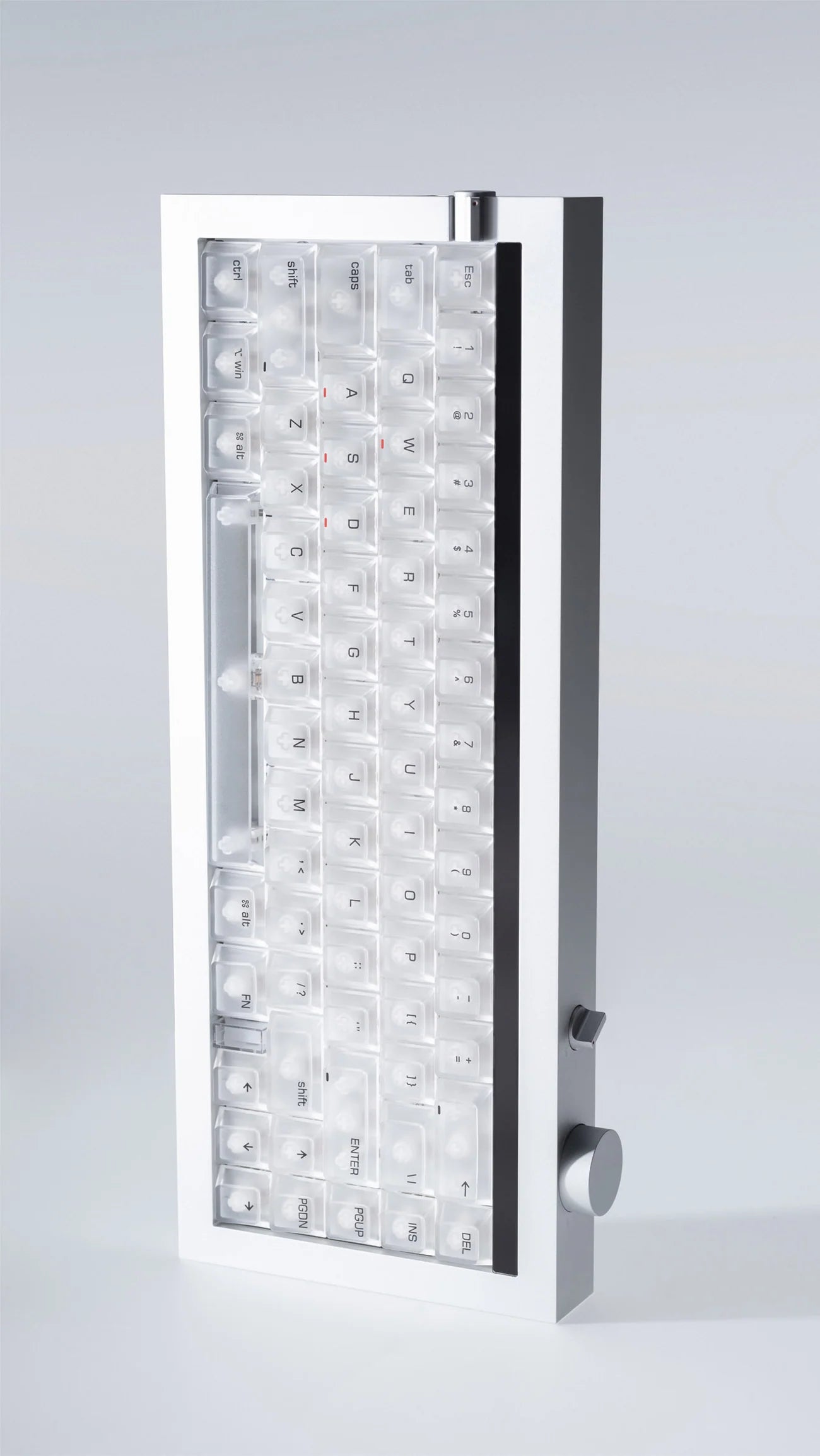

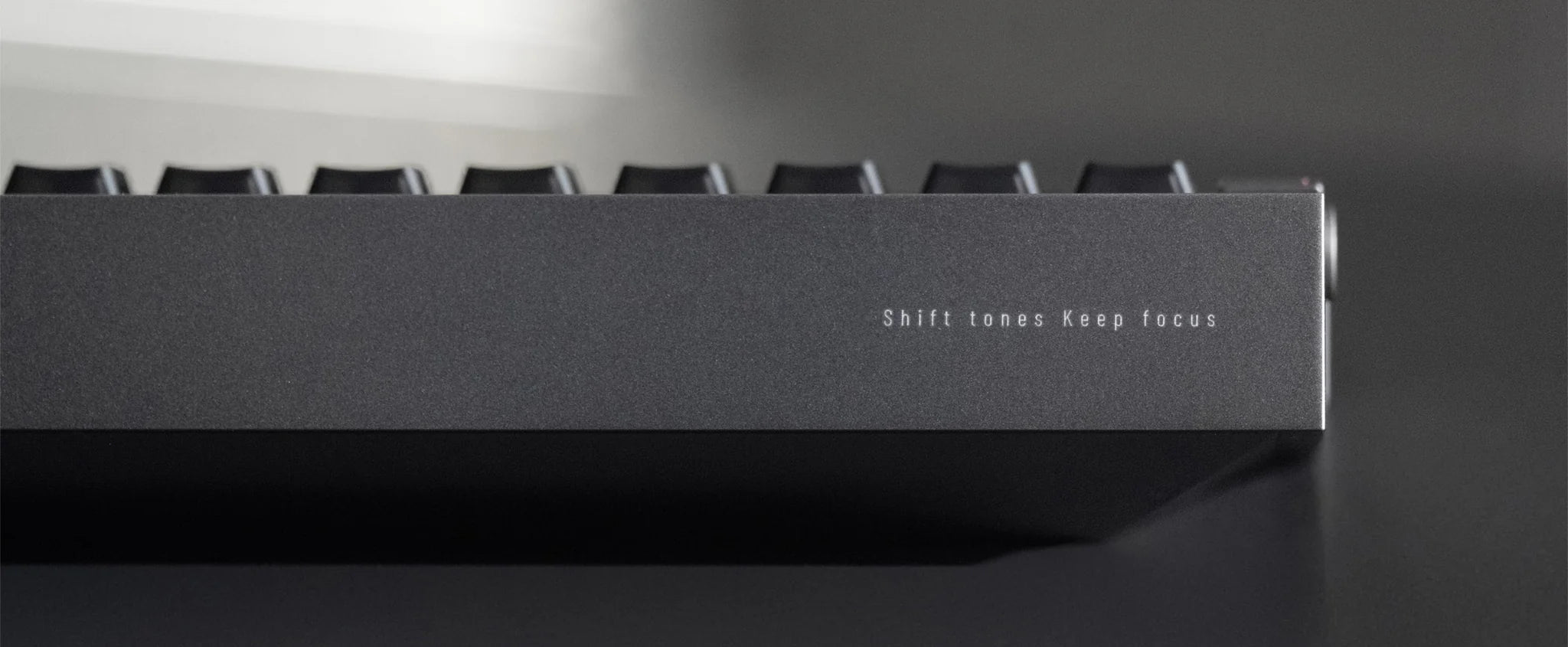

Case CNC aluminium, single block, gasket mount

Plate FR4

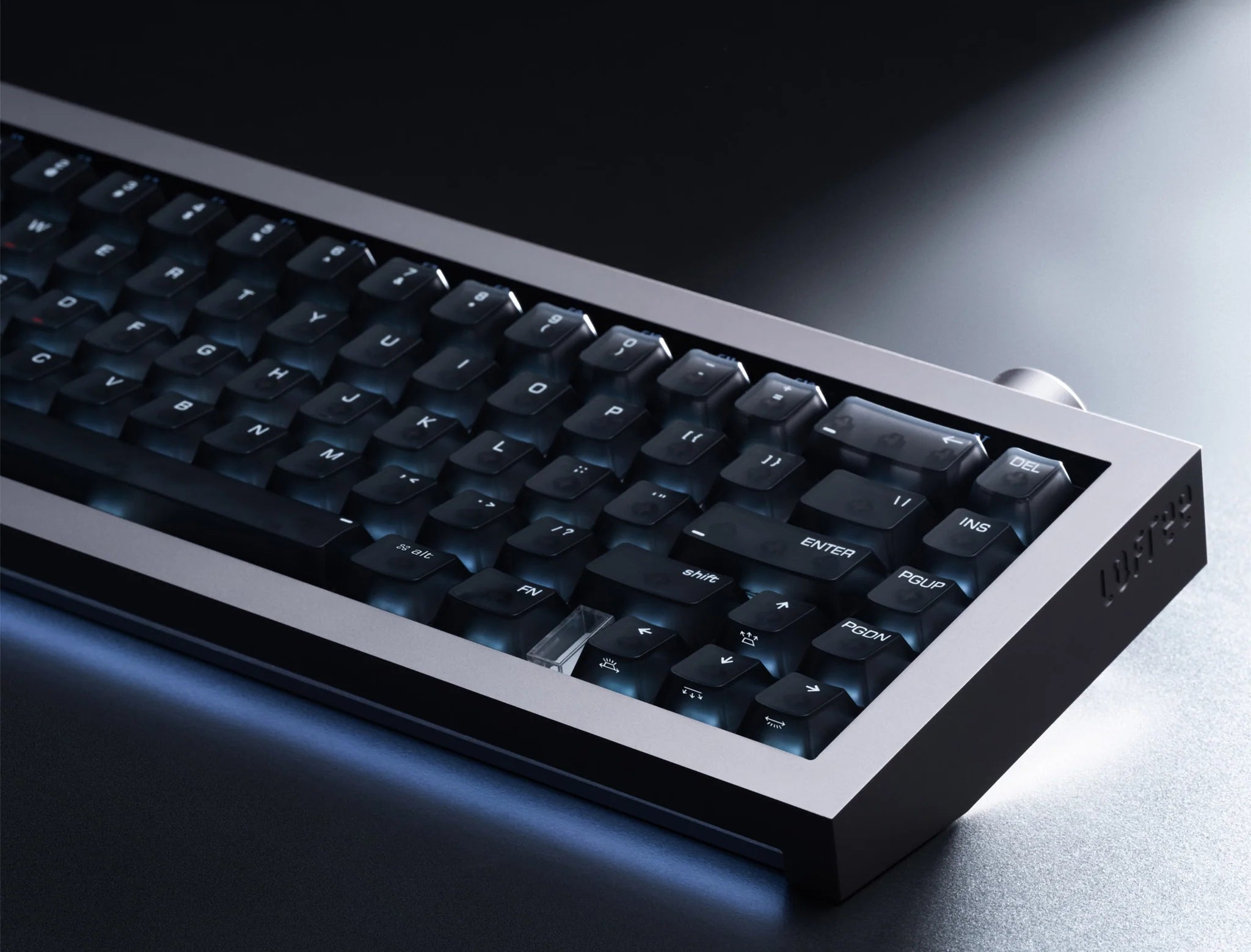

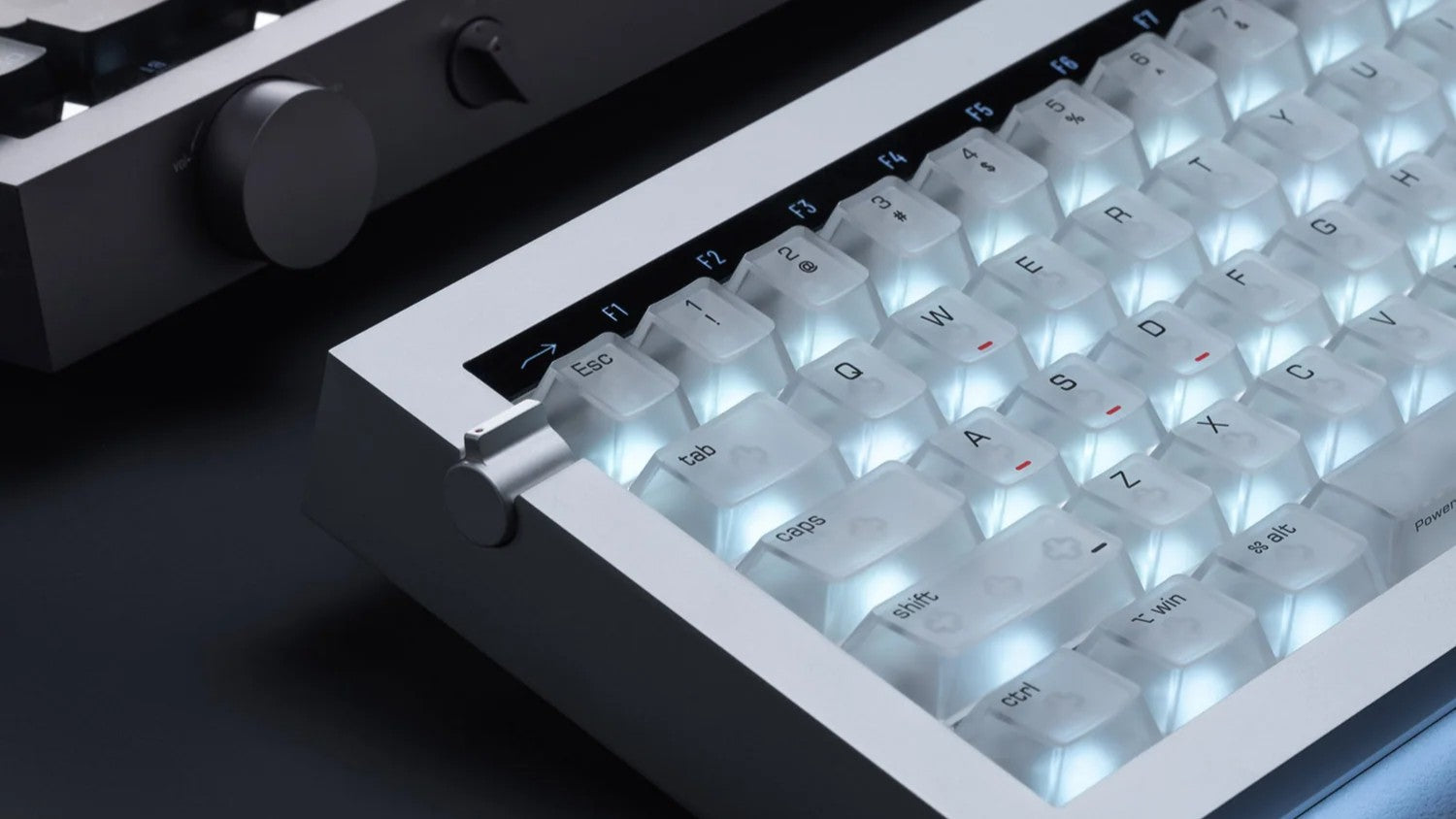

Keycaps Frosted translucent PC

Dampening IXPE pad, bottom foam, PET

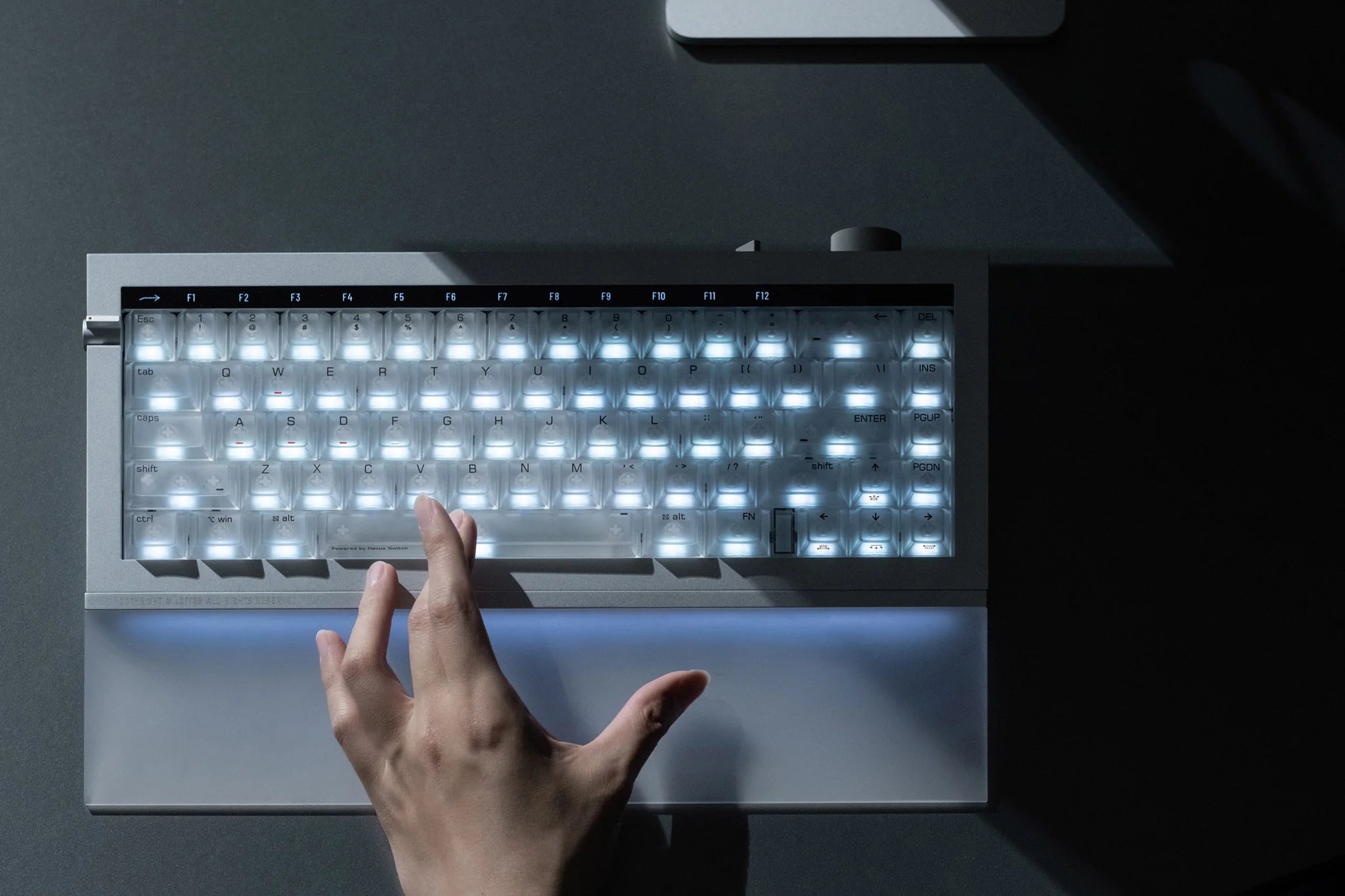

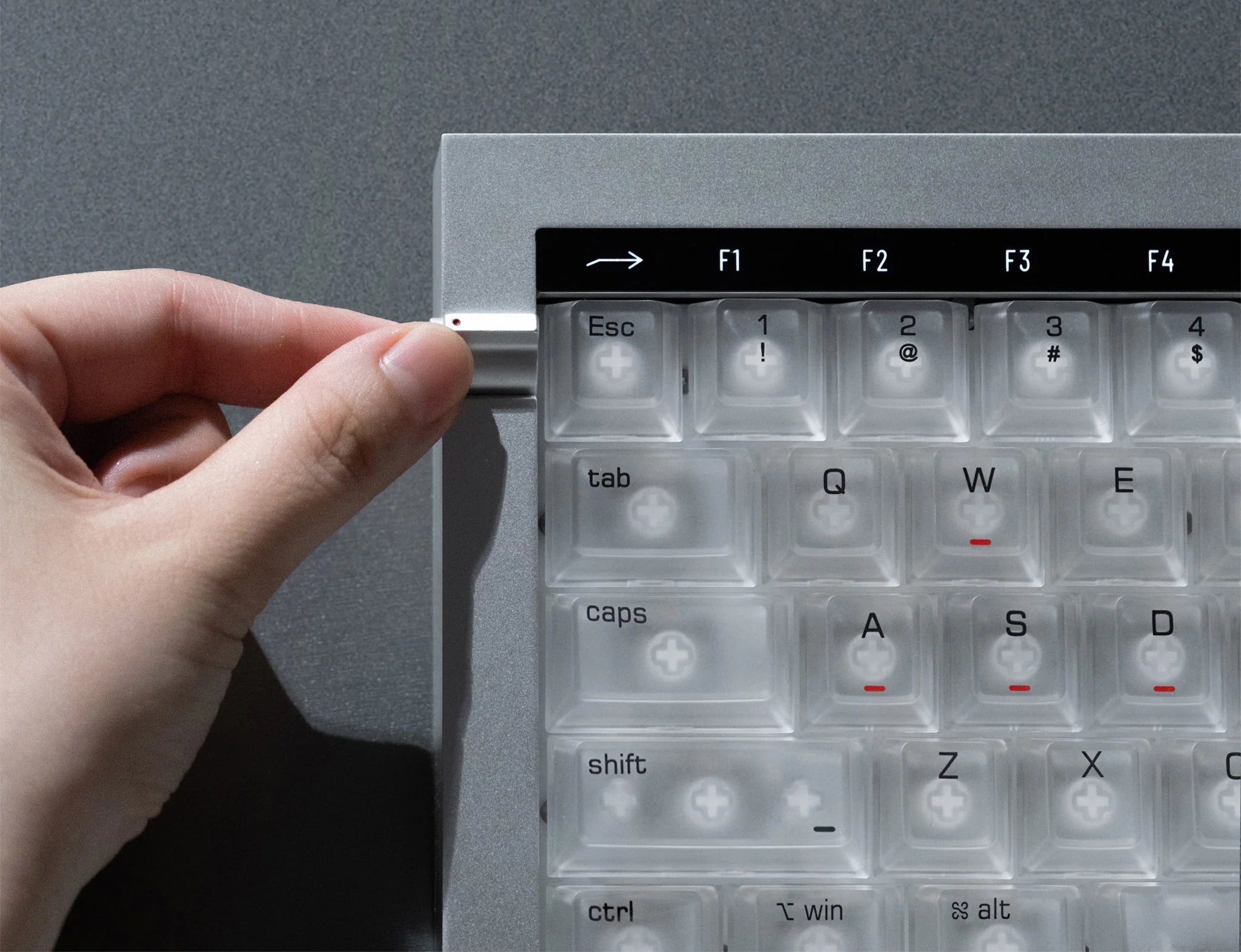

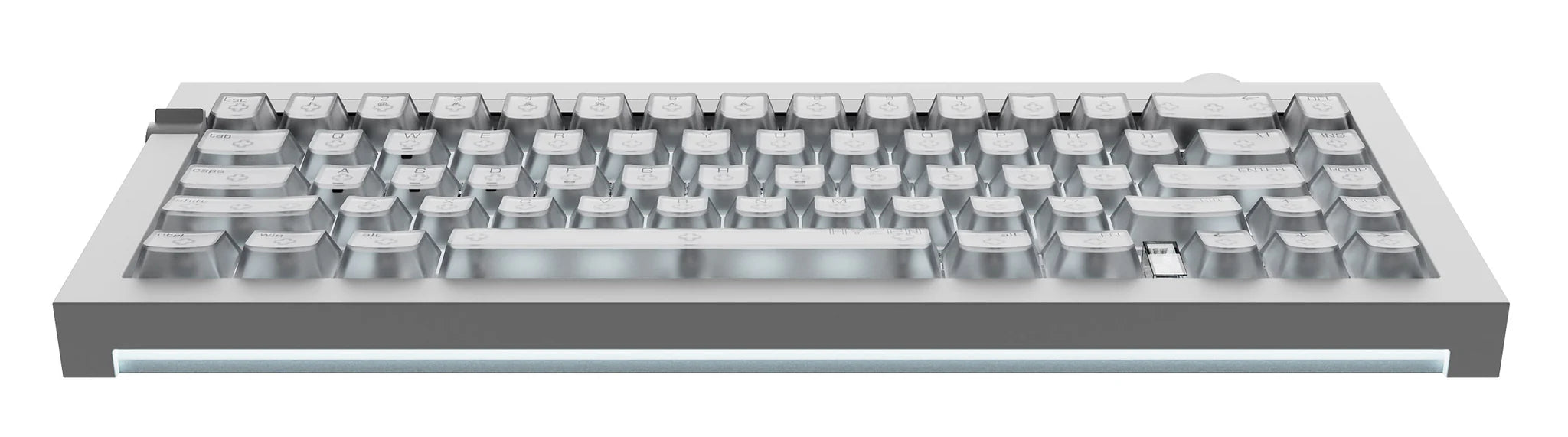

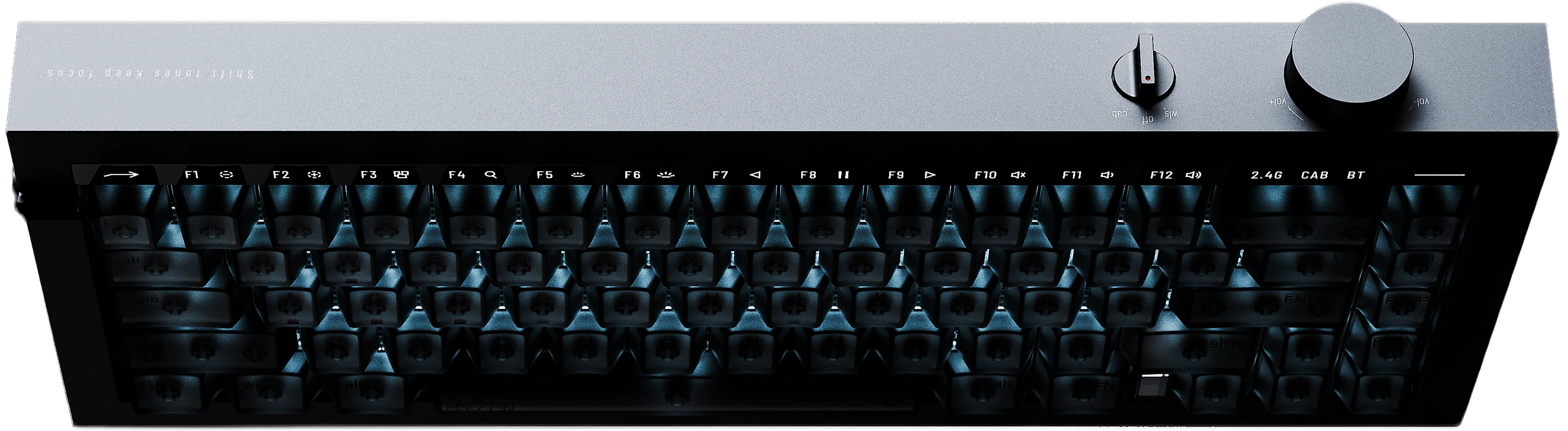

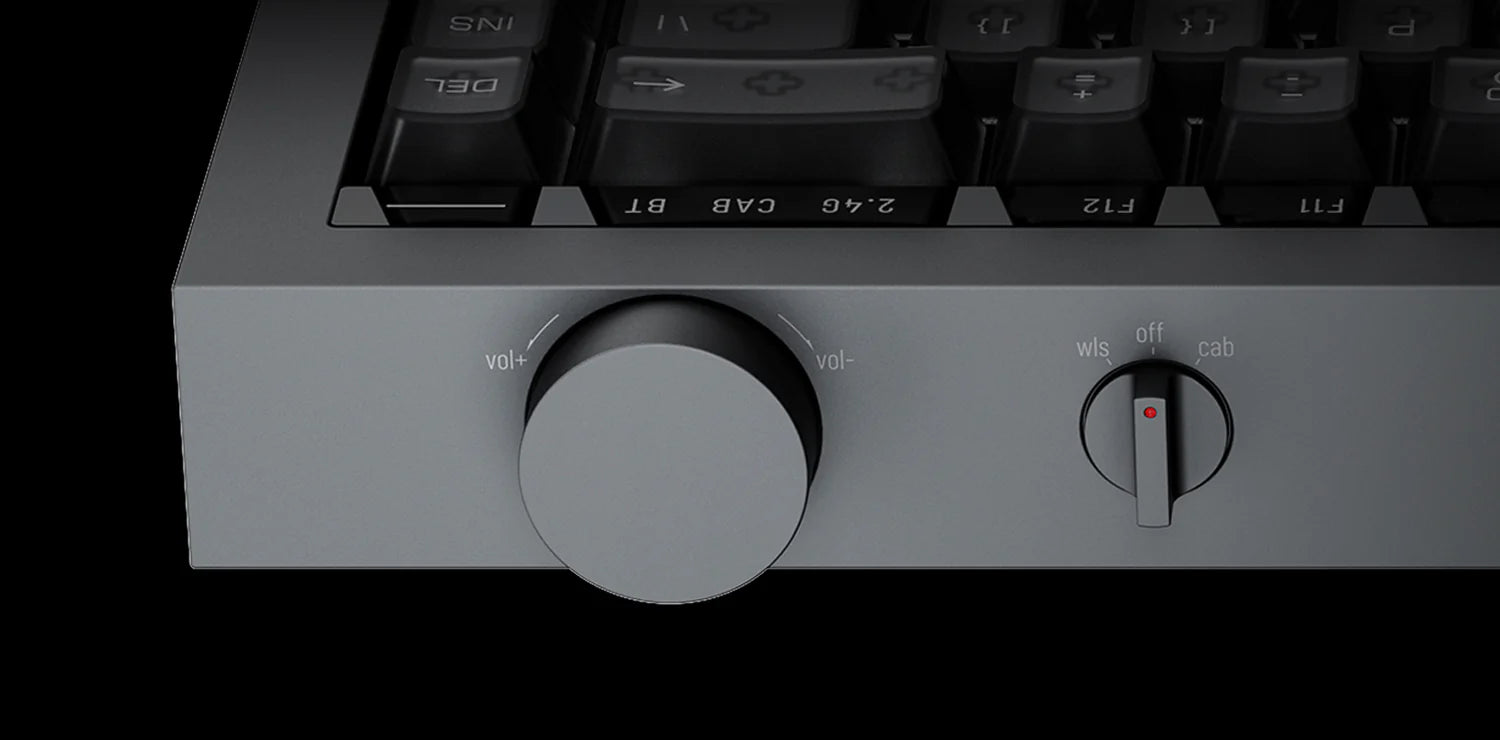

Controls Volume dial, connection toggle (tri-mode), F-row toggle; LED light bar

Connection Wired edition: USB-C. Tri-mode edition: USB-C / 2.4 GHz / Bluetooth 6.0, 10,000 mAh

Software Lofree Hub

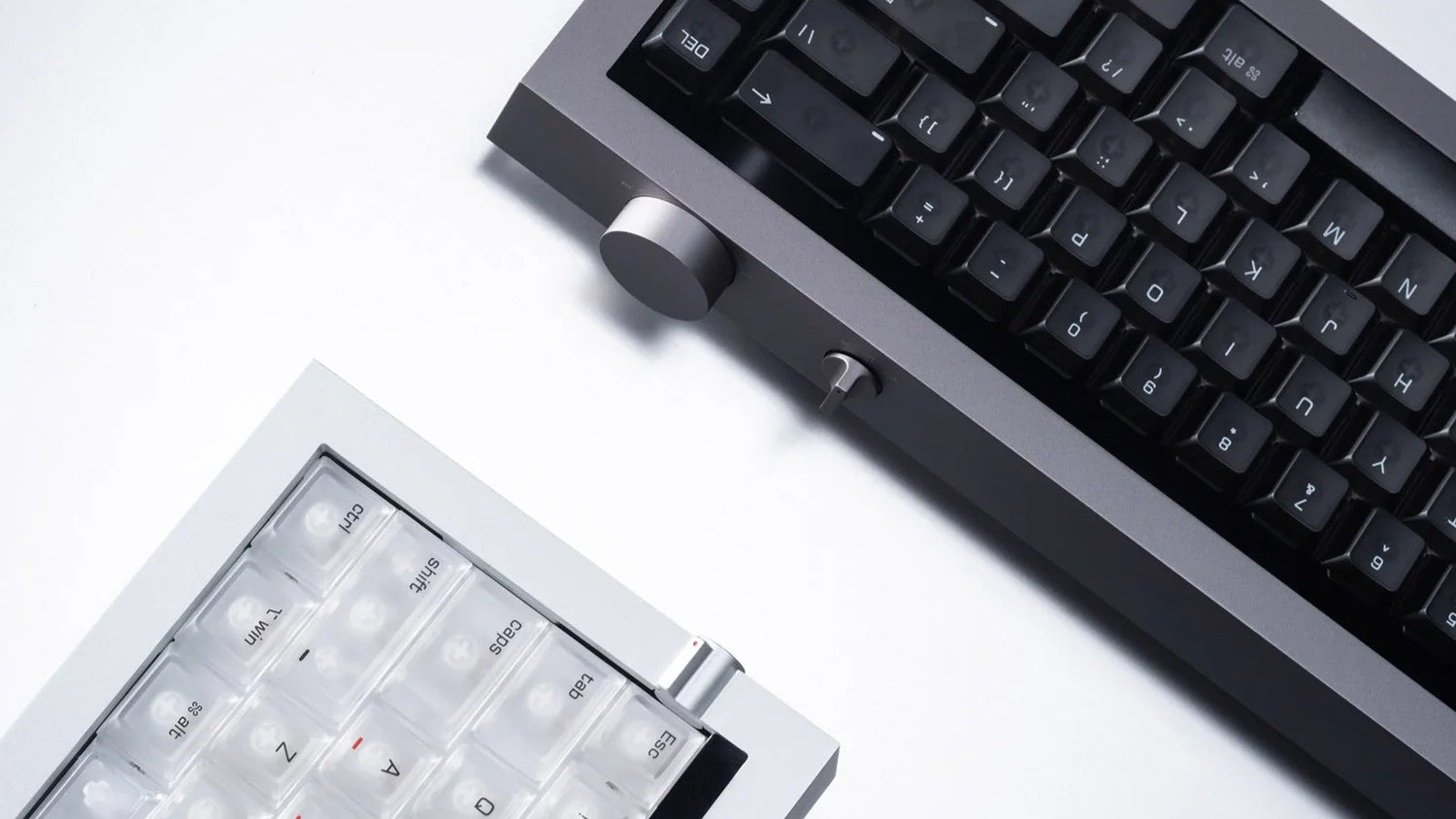

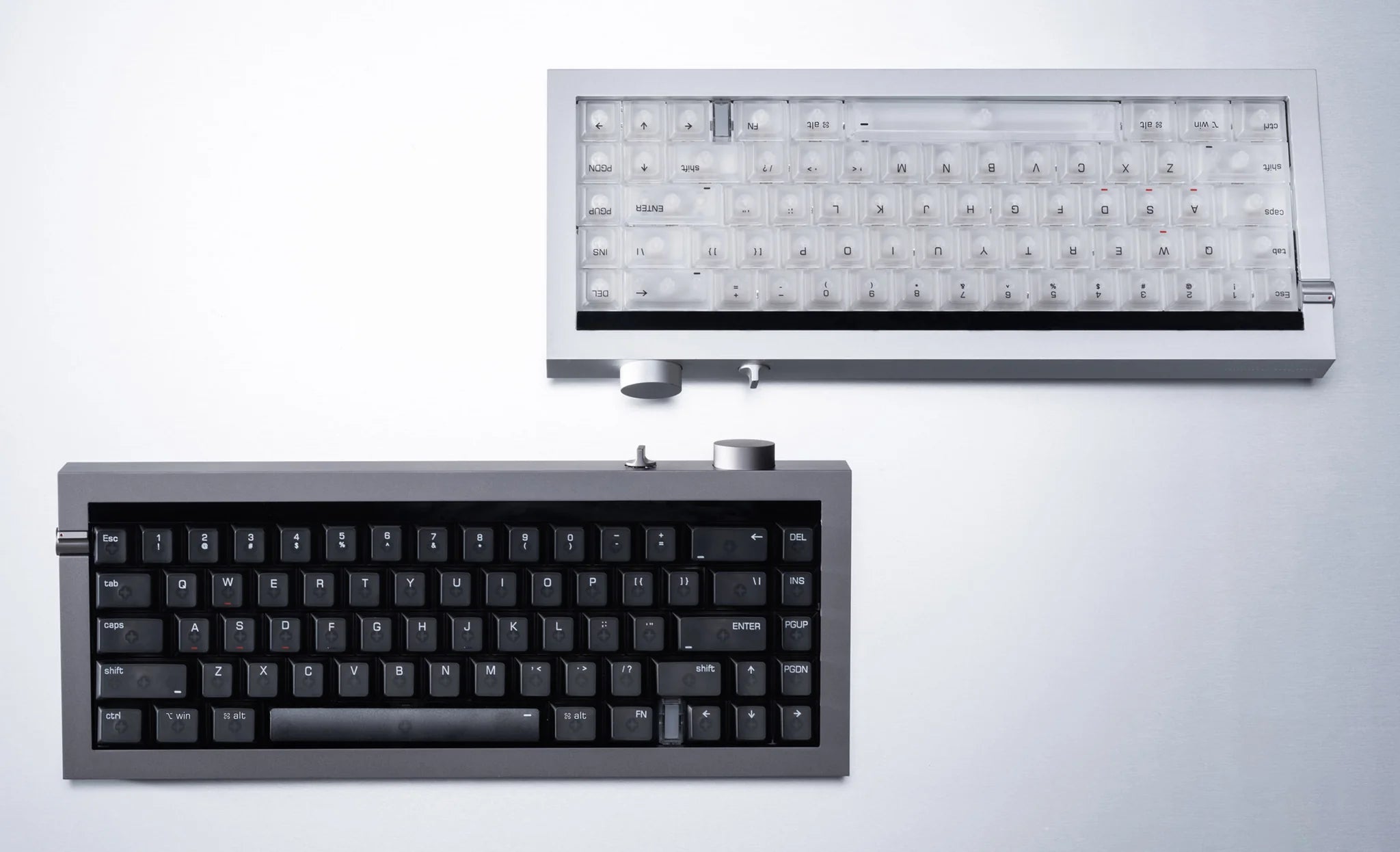

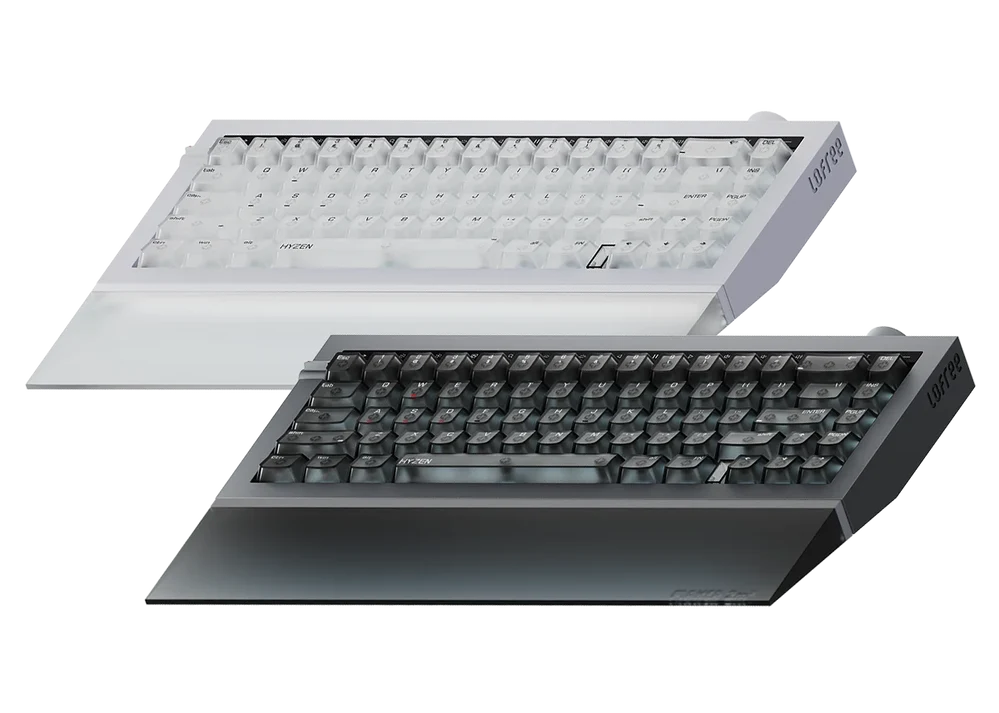

Colours Space Grey, Silver

TMR, not hall effect

A hall-effect sensor reads magnetic field strength; TMR reads a change in resistance, which resolves finer travel, drifts less with temperature and draws less power. A shortcut switches the board between magnetic mode and a plain mechanical mode.

Game functions

Rapid Trigger, Dynamic Keystroke (up to four actions on one press), Mod Tap, Toggle, deeper-press priority, SOCD directional control, Hyper Tap.

Two editions

Wired USB-C cable, keycap puller, manual

Tri-mode 2.4 GHz receiver, USB-C cable, keycap puller, manual
