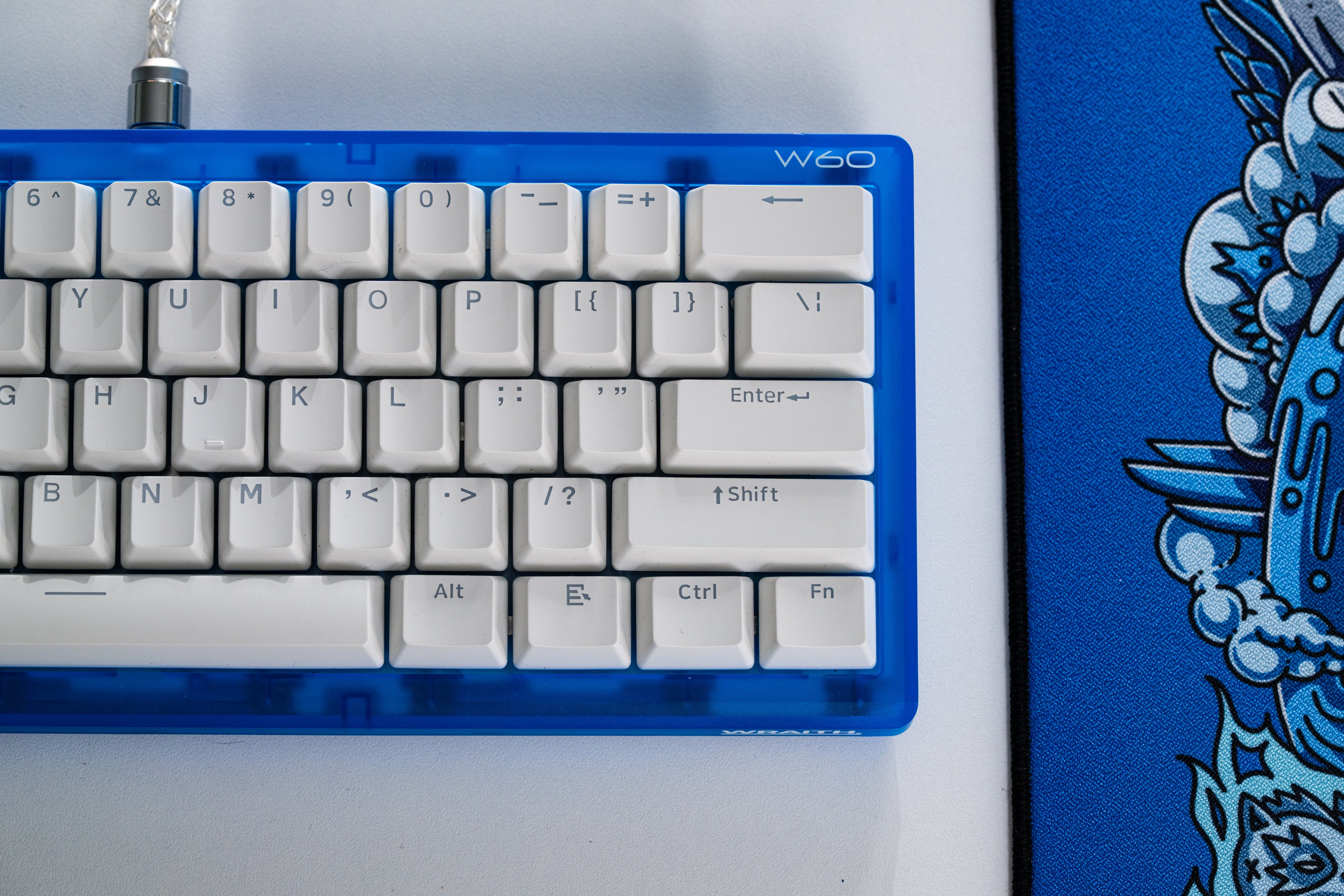

Wraith W60 Hall Effect Keyboard

The Wraith W60 is a 60% hall-effect board on a gasket mount with Wraith Flow magnetic switches, 8K polling and a 32K single-key scan rate.

Specification

Layout 60%

Switches Wraith Flow magnetic; hot-swap with magnetic switches

Actuation 0.1 - 3.4 mm, Rapid Trigger

Polling rate 1000 / 2000 / 4000 / 8000 Hz

Scan rate 32K single key

Mount Gasket

Plate Aluminium

Stabilisers Screw-in, PCB mount

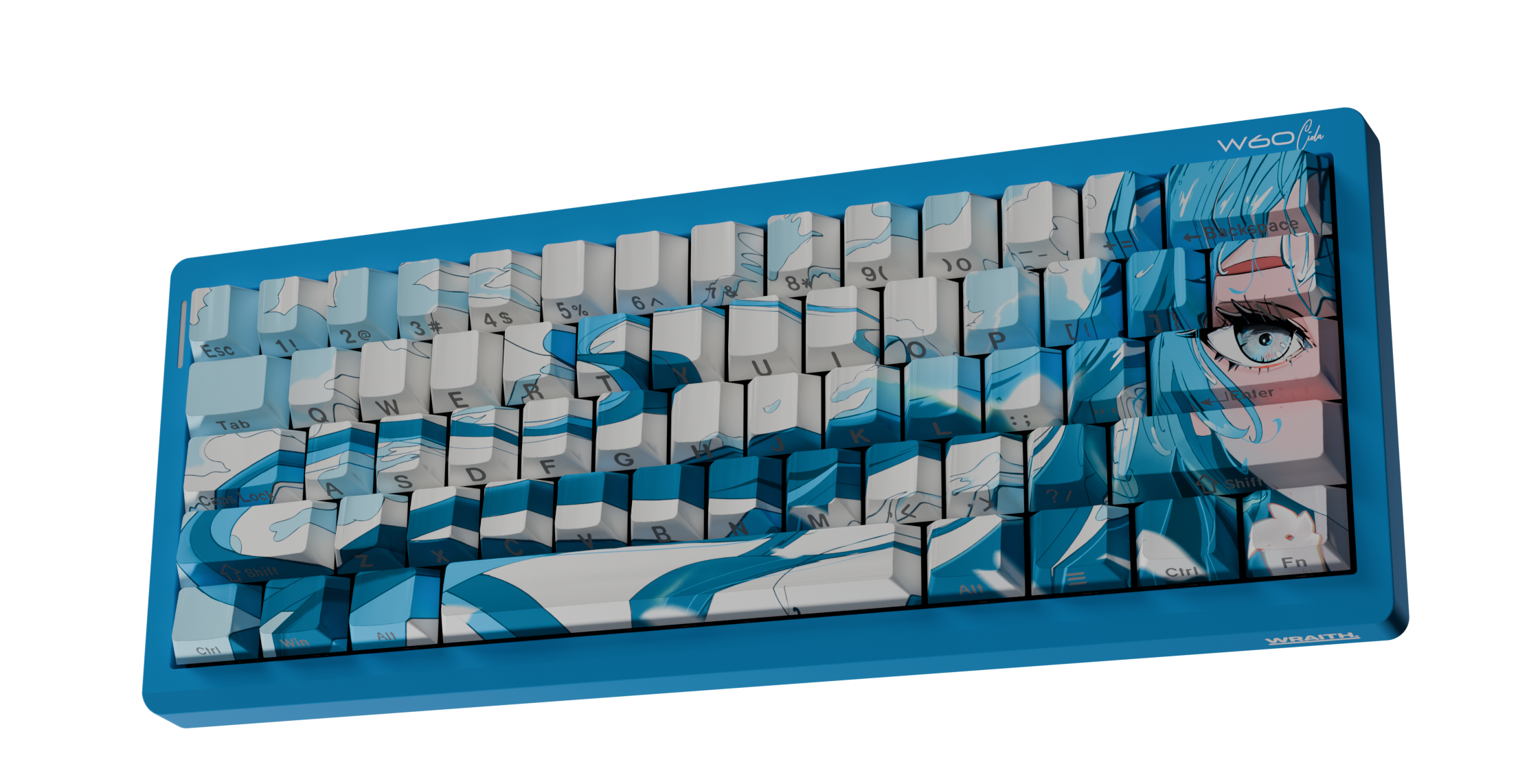

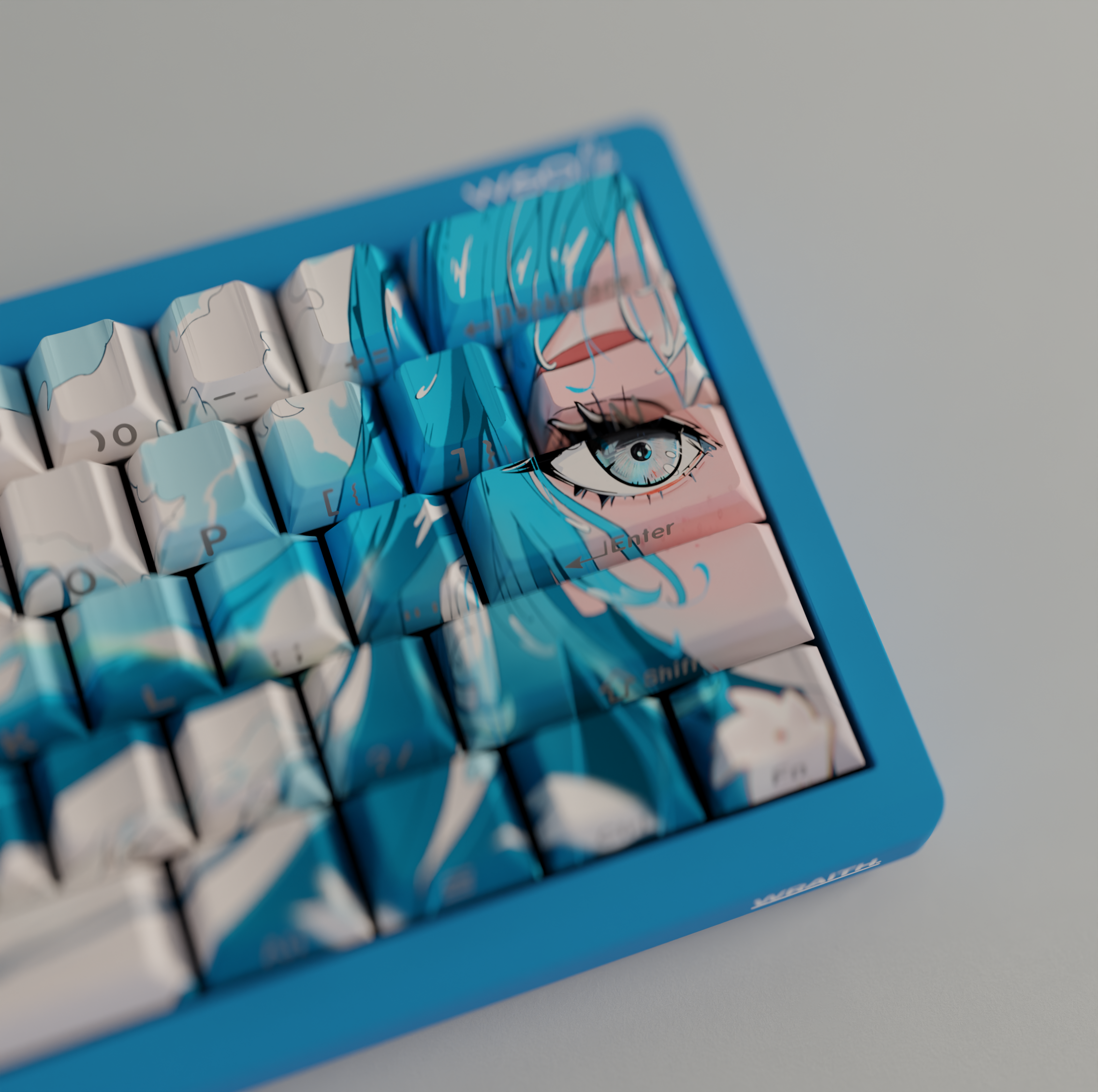

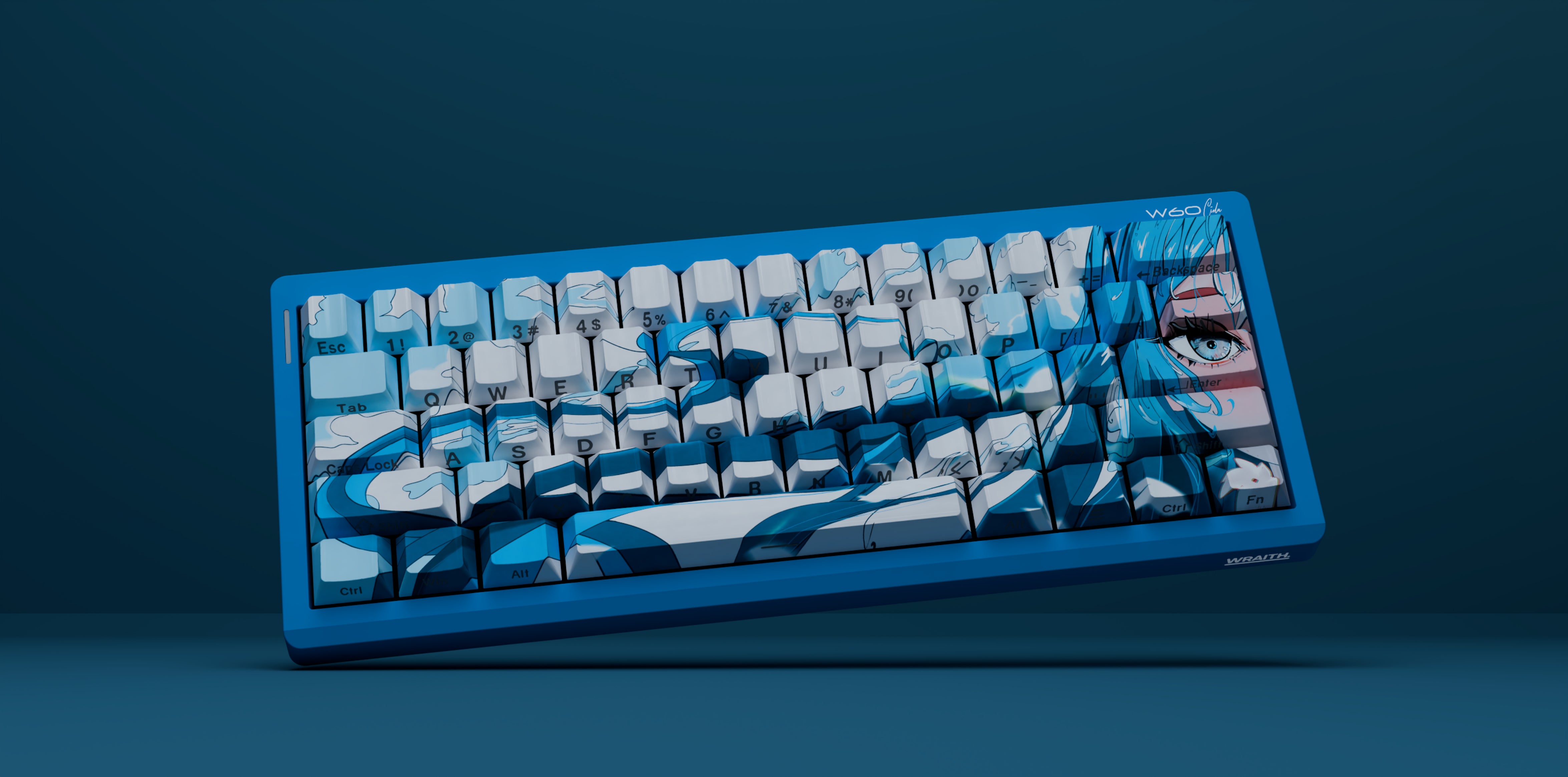

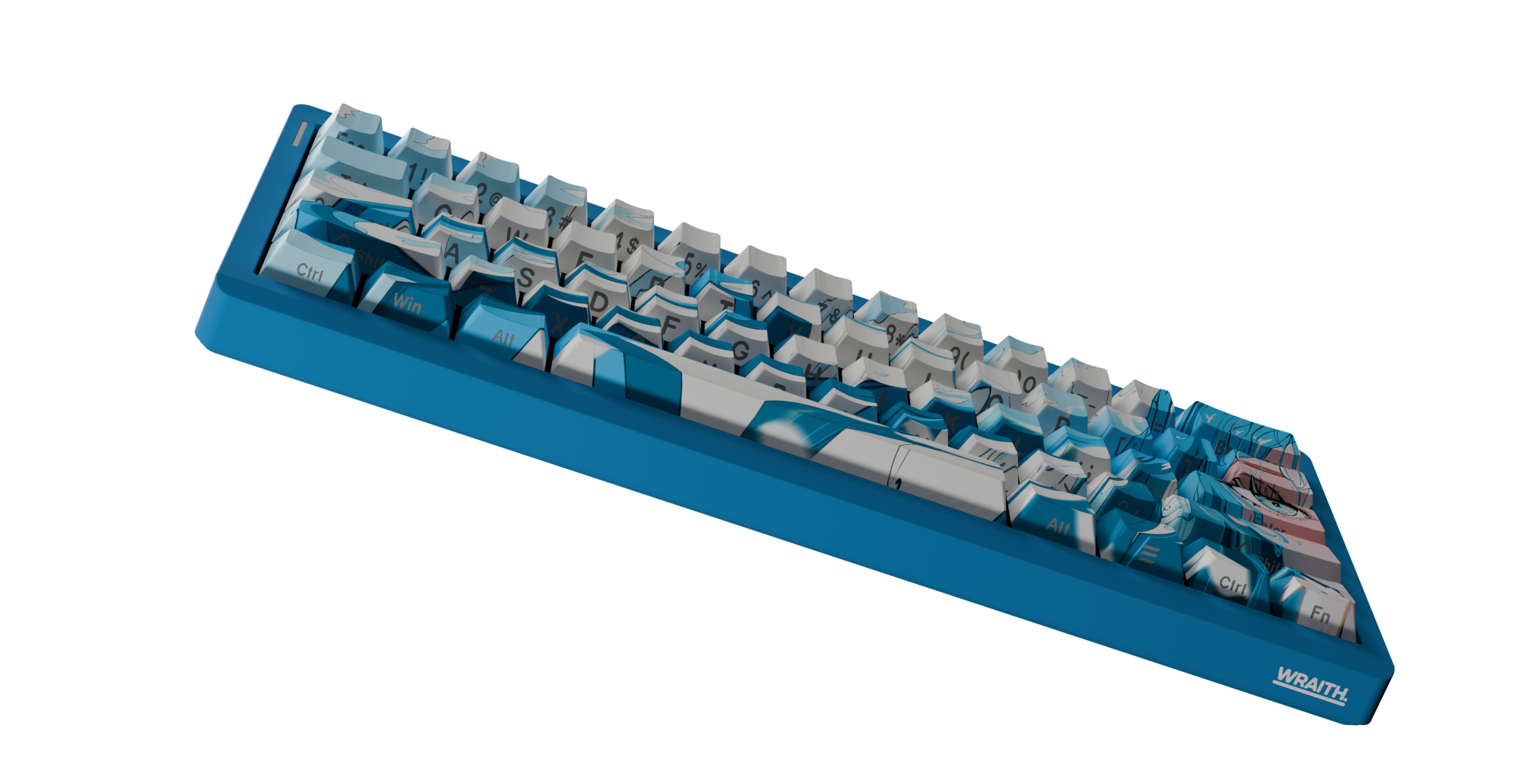

Keycaps OEM PBT double-shot, semi-transparent; Kitsune edition dye-sub five-side

Dampening Plate foam, IXPE switch dampers, silicone base

Software Web

Connection USB-C wired

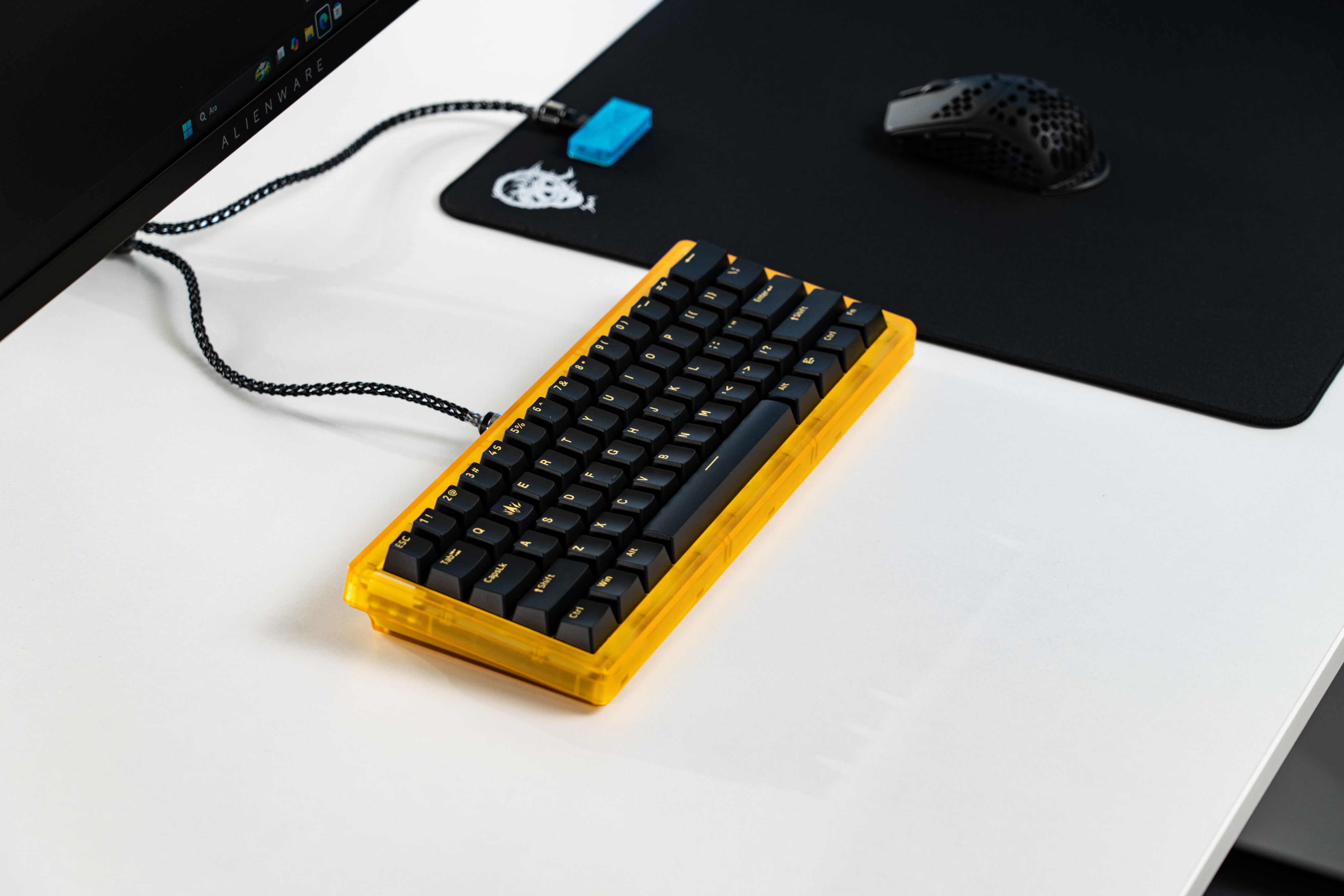

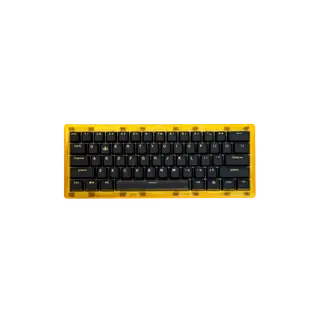

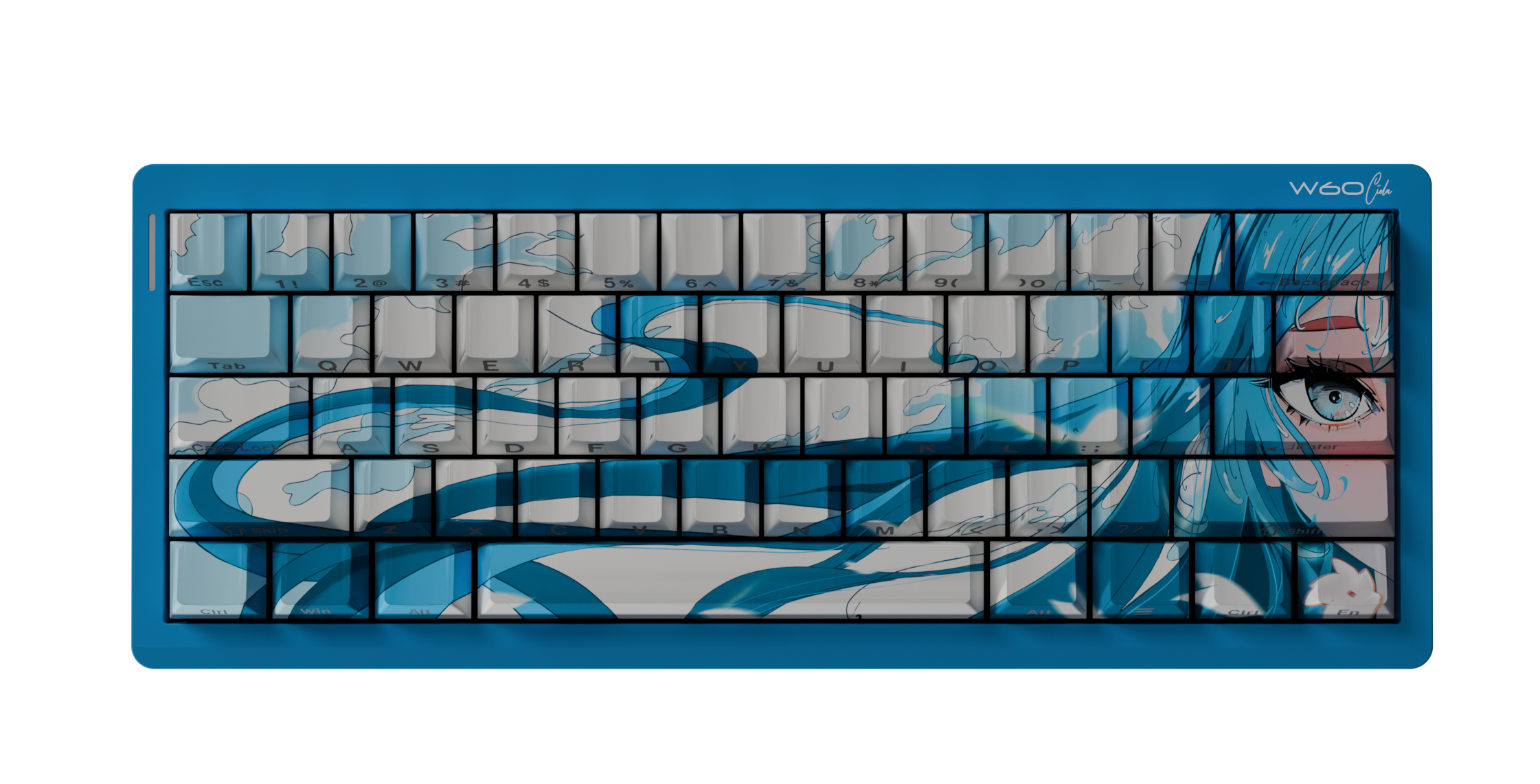

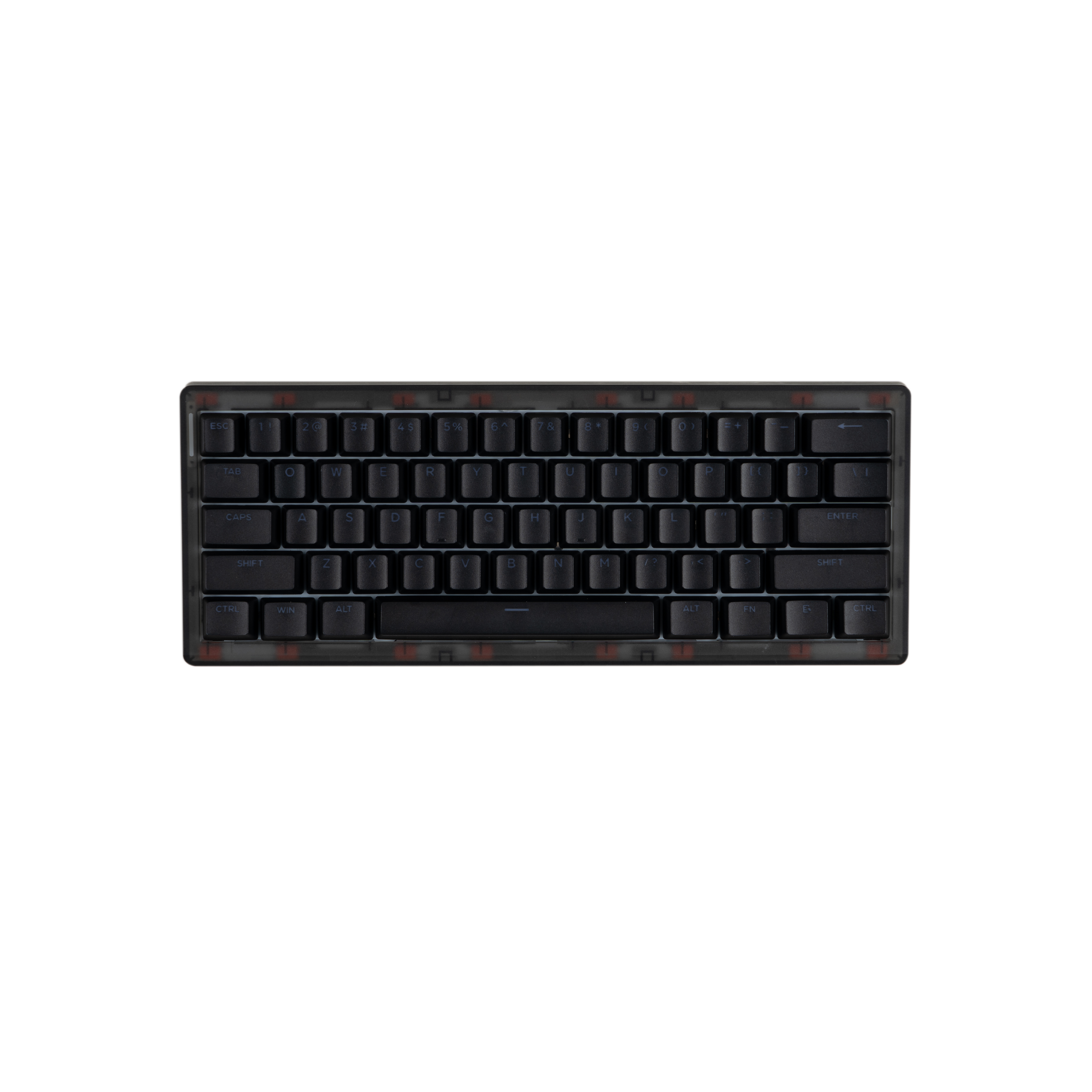

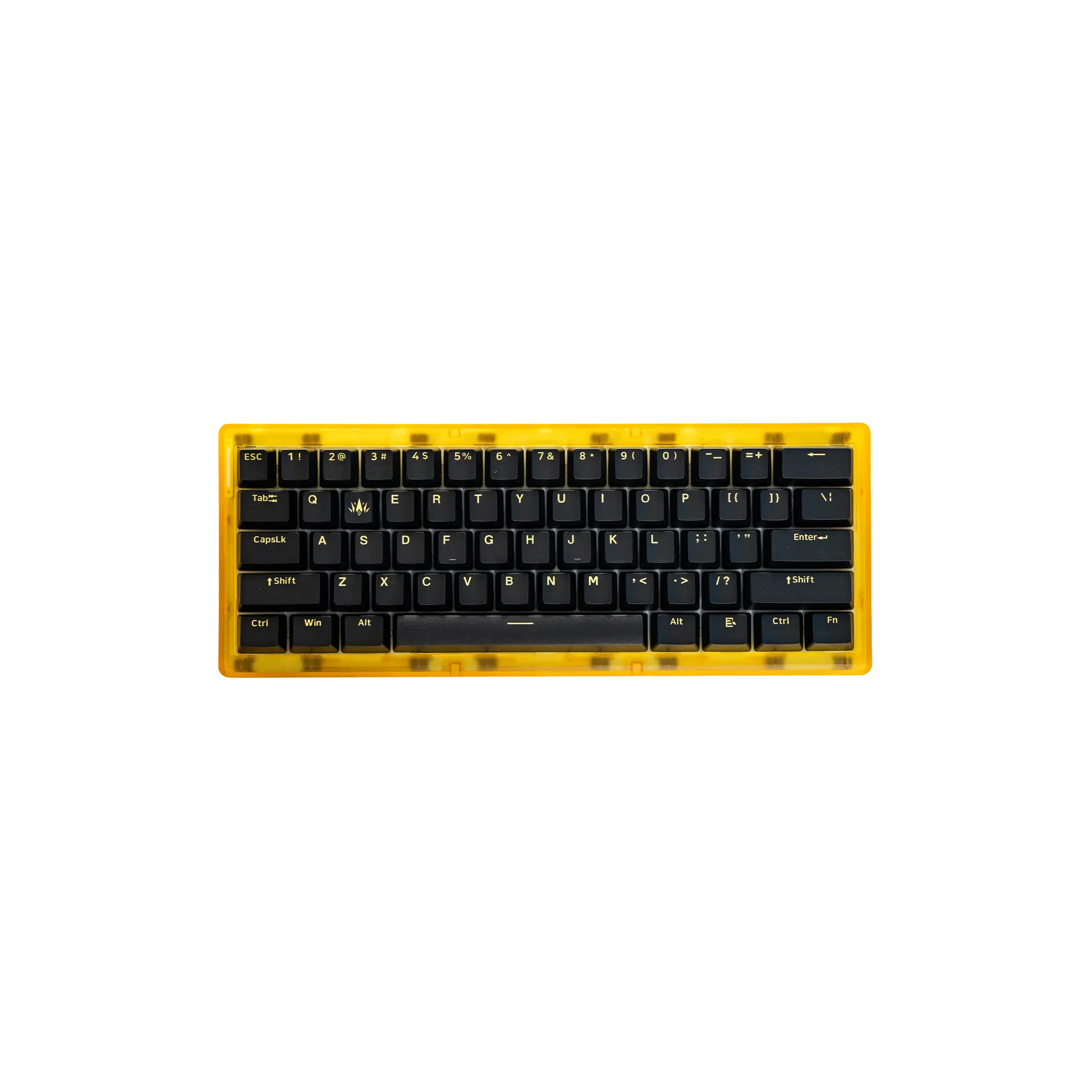

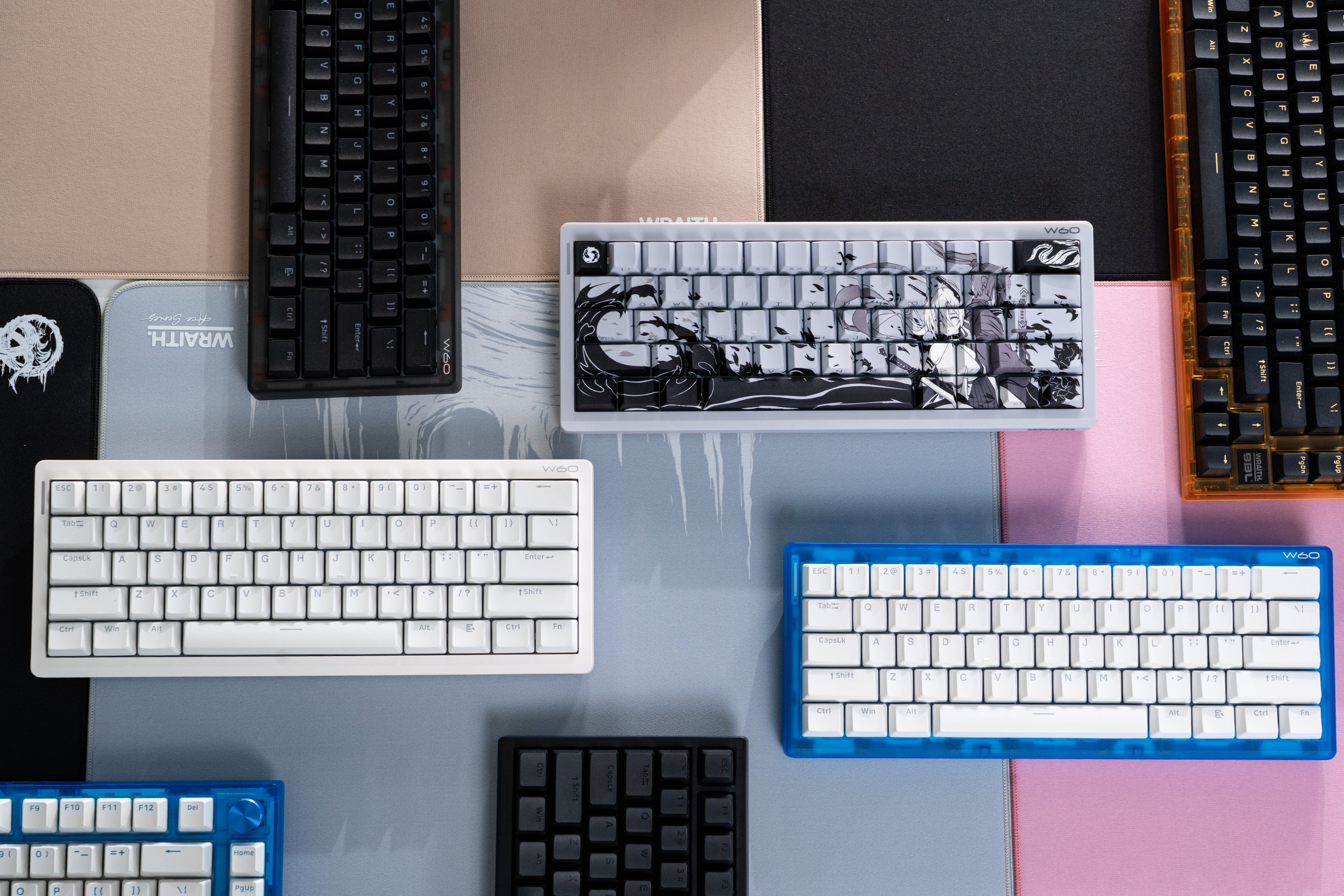

Colours Cyber Blue, White, Stealth Black, BBL and Ceila limited editions

Why hall effect

A magnetic switch reports how far the key has travelled, not just on or off. The actuation point is yours to set from 0.1 mm, and Rapid Trigger resets a key the instant it starts to rise. Everything is set in a web page; nothing to install.
